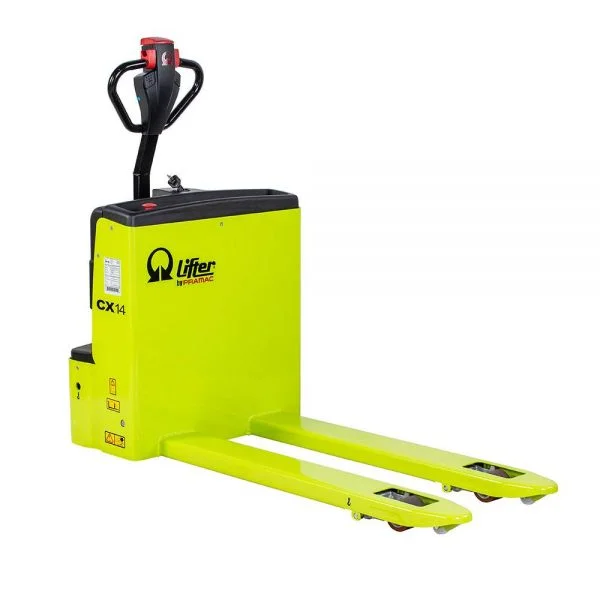

CX14

CHF3,914.00CHF4,724.00 exc. VAT

The new CX14 electric pallet trucks are compact, lightweight and easy to use.  They have been specifically designed for use in confined spaces within rail, shops, supermarkets and on-board delivery vehicles.  These simple and efficient pallet trucks are built to last and are perfect for all your pedestrian material handling needs.

CX14

The new CX14 electric pallet trucks are compact, lightweight and easy to use.  They have been specifically designed for use in confined spaces within rail, shops, supermarkets and on-board delivery vehicles.  These simple and efficient pallet trucks are built to last and are perfect for all your pedestrian material handling needs.  They are available in four different versions: BASIC, PLUS AGM, EVO AGM and EVO Li-ION (Lithium batteries).

The BASIC version is equipped with:

  • Starting type battery
  • Tiller made with metal tube and ergonomic fingertip controls
  • Reliable DC drive system A configuration that offers best value for money.
  • Short chassis dimension (L2 = 410 mm) to offer improved manoeuvrability in confined spaces.
  • Compact design perfect for working in narrow areas and corridors, featuring a tighter turning radius (Wa = 1345 mm) for faster pinwheeling and easier navigation incongested spaces.
  • Smooth rounded fork tips and entry/exit rollers to optimize pallet handling.
  • Robust frame (metal motor wheel protection 6 mm thick) designed to guarantee maximum durability and resistance to torsion and heavy loads.
  • Battery discharge indicator to allow easy management
  • Easy access to electrical components for maintenance
  • Strong ABS cover with storage tray on top, easily removable for simple access to batteries and key components speeding-up maintenance operations.
  • Easy access to the motorwheel components through dedicated inspection opening.
  • Schuko plug with spiral cable and on board battery charger.
  • Ergonomic tiller designed for both left and right handed operation.
  • Butterfly valves for traction control.
  • Safety push button with warning buzzer.
  • Turtle function for moving in tight areas with the handle in vertical position while remaining almost within the profile of the machine.
  • Ergonomic tiller designed for both left and right handed operation.
  • Butterfly valves for traction control.
  • Safety push button with warning buzzer.
  • Turtle function for moving in tight areas with the handle in vertical position while remaining almost within the profile of the machine.

Offered as standard, this function enables operating the truck in confined spaces: it allows the unit to travel with the tiller in upright position.  This function is activated by pressing the turtle button on the tiller and rotating the drive control throttle.  The truck travels at limited speed.  Release the button to disable this function.

Built-in battery charger provides a convenient charging solution and eliminates the need to remove the battery from the machine.

Traction is granted by the biggest heavy-duty stabilizer wheels (100×40 mm) in the category, with heavy duty spring. All linkage connections done through bushings that increase stability and durability.

Standard configuration provided with single polyurethane rollers. Available tandem rollers as optional.

Product Specification
